Model |
T2+2 |
| Qty/40’HQ |
16 units |
|
Specifications |
|
| Passenger capacity |
4 seats |
| Max. Speed |
40 km/h |
| Range |
90 km |
| Climbing Ability |
25% |
| Braking Distance |
6 m |
| Min. Turning Radius |
3.5 m |
| Min. Clearance |
185 mm |
| Recharge time |
5~6 h |
| L×W×H |
3150*1350*2100 mm |
| Curb Weight |
510 kg |
| Max. loading |
420 kg |
| Motor | EJIA-VCT 48V/5KW AC motor |
| Controller | EJIA-ENP 48V/400A AC controller |
| Batteries | Lithium LFP battery 150AH |
| Accelerator | Holl type, Continuously variable speed system |

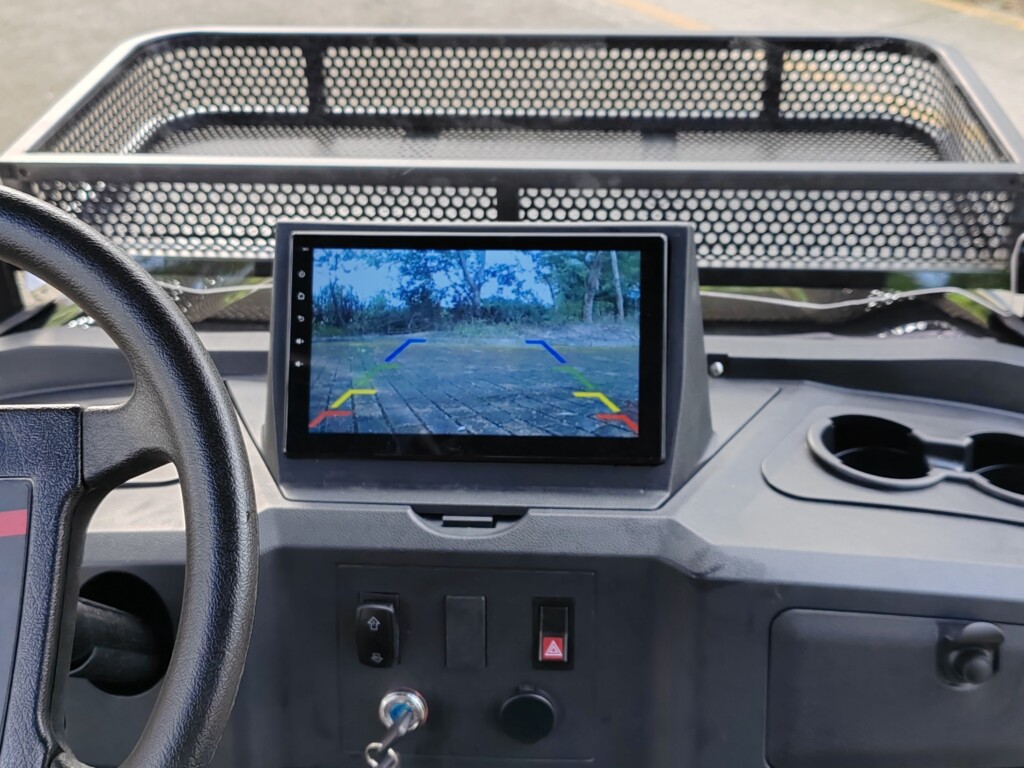

| Combination instrument | 10″ LED, Battery indicator, Speed meter, Odometer, Lights indicator, Bluetooth media system, rearview camera |
| Forward/Reverse switch | USA Carling, Water-resistant |
| Body & Roof | Plastic PP and ABS with excellent resistance to impacts |
| Windshield | See-through PMMA, Scratch resistant, foldable windshield, with DOT certificate |
| Seats | Sponge + artificial leather |
| Seat Belts | 3-point seat belts |
| Rear view mirror | 1 central mirror + 2 side mirrors with trun lights |

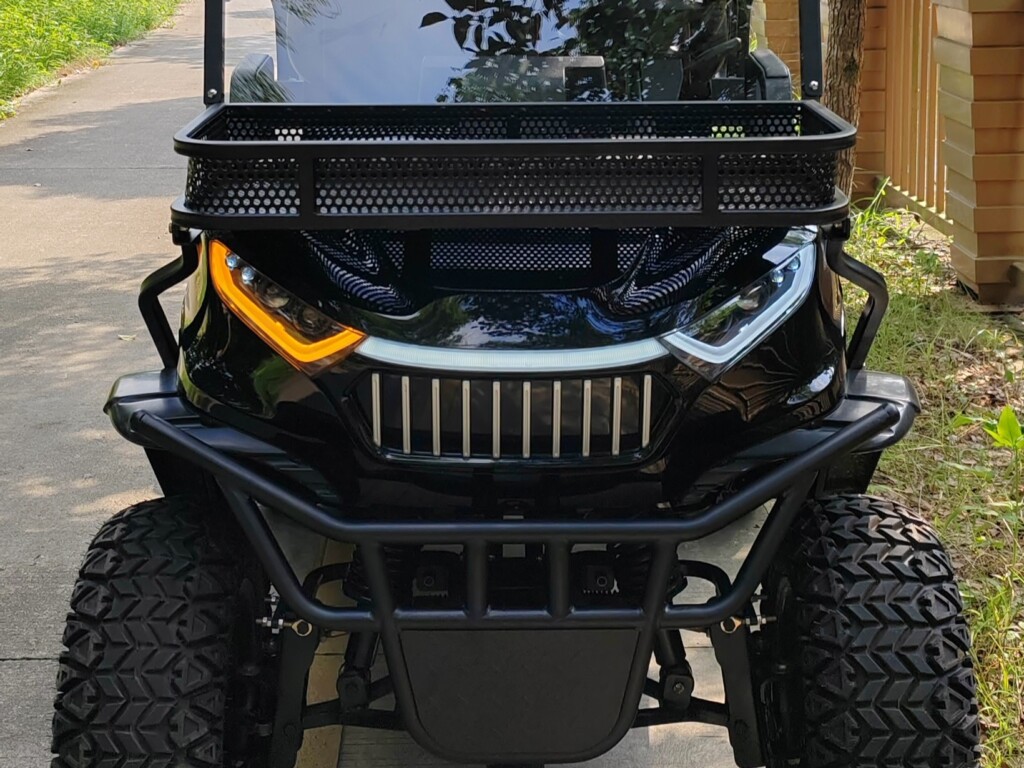

| Front bumper | Steel and plastic PP bumper |
| Tire and wheel | All terrain tire 23*10.5-14, 14 inch aluminum wheel |
| Chassis | High strength welded structure, Galvanized |
| Rear axle | High efficiency gear drive, Maintenance free |
| Steering | Double-ended rack and pinion, Automatic gap compensation function |
| Steering wheel | Clip board on steering wheel |
| Front suspension | Double-wishbone independent suspension, coil over shocks |
| Rear suspension | Multi leaf spring and hydraulic shocks |
| Lighting system | 2 LED headlights, 2 front turn signals, 2 rear lights, 2 rear turn signals |
| Sound system | Reversing buzzer, horn, bluetooth speaker |
| Driving brake system | Active Induction Motor Brake system (AIMB), Rear wheel mechanical drum brakes |
| Parking brake system | Electric-mechanical parking brake (EMB) |
| Charger | On abord charger, High frequency, With temperature protection, 48V / 25A |
| Options: | |
| Color Option | Standard color is white, beige, red, blue, green, gold, silver, black, pink. Customizing personalized color is a available. |
Feature and specification of vehicles subject to change without notice.
Vehicles as photographed may include options not included on base model.
